3.3. Objects Owning Other Dynamically Allocated Objects

3.3.1. Recall: When Are Destructors Called?

Recall that destructors are called when an object goes out of scope or when delete is used on a pointer to an object. For example, in the following code, when the Complex object c goes out of scope at the end of the main function, the destructor ~Complex() is automatically called.

Code

#include <iostream>
using namespace std;


class Complex {
  public:
    int real;
    int imag;
    Complex(int r, int i) {
      real = r;
      imag = i;
      cout << "Constructor called for Complex(" << real << ", " << imag << ")" << endl;
    }
    ~Complex() {
      cout << "Destructor called for Complex(" << real << ", " << imag << ")" << endl;
    }
};

int main(void) {
  Complex c(1, 2);
  Complex *p = new Complex(4, 5);

  delete p;
  return 0;
}

Note

In delete p, there are two things that happen: Step 1: destructor ~Complex() is called for the object pointed to by p, which is the dynamically allocated Complex object.

Step 2: After this line, the memory allocated for that object is freed.

This means the destructor is not responsible for freeing the memory of the object it is called on; it is the delete operator that frees the memory.

3.3.2. Recall: Why Do We Need Destructors?

Destructors need to be defined if the object has dynamically allocated memory that needs to be freed. This means if Complex object had a pointer pointing to dynamically allocated memory, we would need to define a destructor to free that memory. If we do not define a destructor, the memory allocated for that object will not be freed, leading to a memory leak.

3.3.3. Why Do We Need Destructors for Objects Owning Other Dynamically Allocated Objects?

What happens when an object has a data member that is a pointer to another dynamically allocated object? For example, consider the following Complex class that has a data member Complex* next, which is a pointer to a dynamically allocated Complex object.

Fig. 3.7 When delete p is called, the destructor ~Complex() is called for the first Complex object, and the memory for that object is freed. However, the memory for the second Complex object pointed to by p->next is not freed, leading to a memory leak.

In line 8, Complex* next; is a pointer to another Complex object.

In line 17, Complex *p = new Complex(4, 5); dynamically allocates a Complex object and stores its address in the pointer p. The next pointer of this object is pointing to nullptr as set in the constructor.

In line 18 p->next = new Complex(7, 8);, the right hand side new Complex(7, 8); dynamically allocates another Complex object and assigns its address to p->next, which is the next pointer of the first Complex object.

In line 20, when we call delete p;, it calls the destructor (that does nothing as it’s not defined) for the first Complex object, which is pointed to by p. Then, the memory for that first Complex object is freed.

However, the second Complex object is not freed. This results in a memory leak. Of course, one can do delete p->next before delete p;; however, what if we have multiple objects and we forgot to free one object?

Solution

The solution is to define a destructor for the Complex class, that frees the memory for the next pointer if it is not nullptr. This way, when delete p; is called, the destructor will also free the memory for the second Complex object pointed to by p->next.

In the following code, the destructor ~Complex() is defined to free the memory for the next pointer if it is not nullptr.

We put this things further by having another Complex object that is pointed to by the next pointer of the second Complex object.

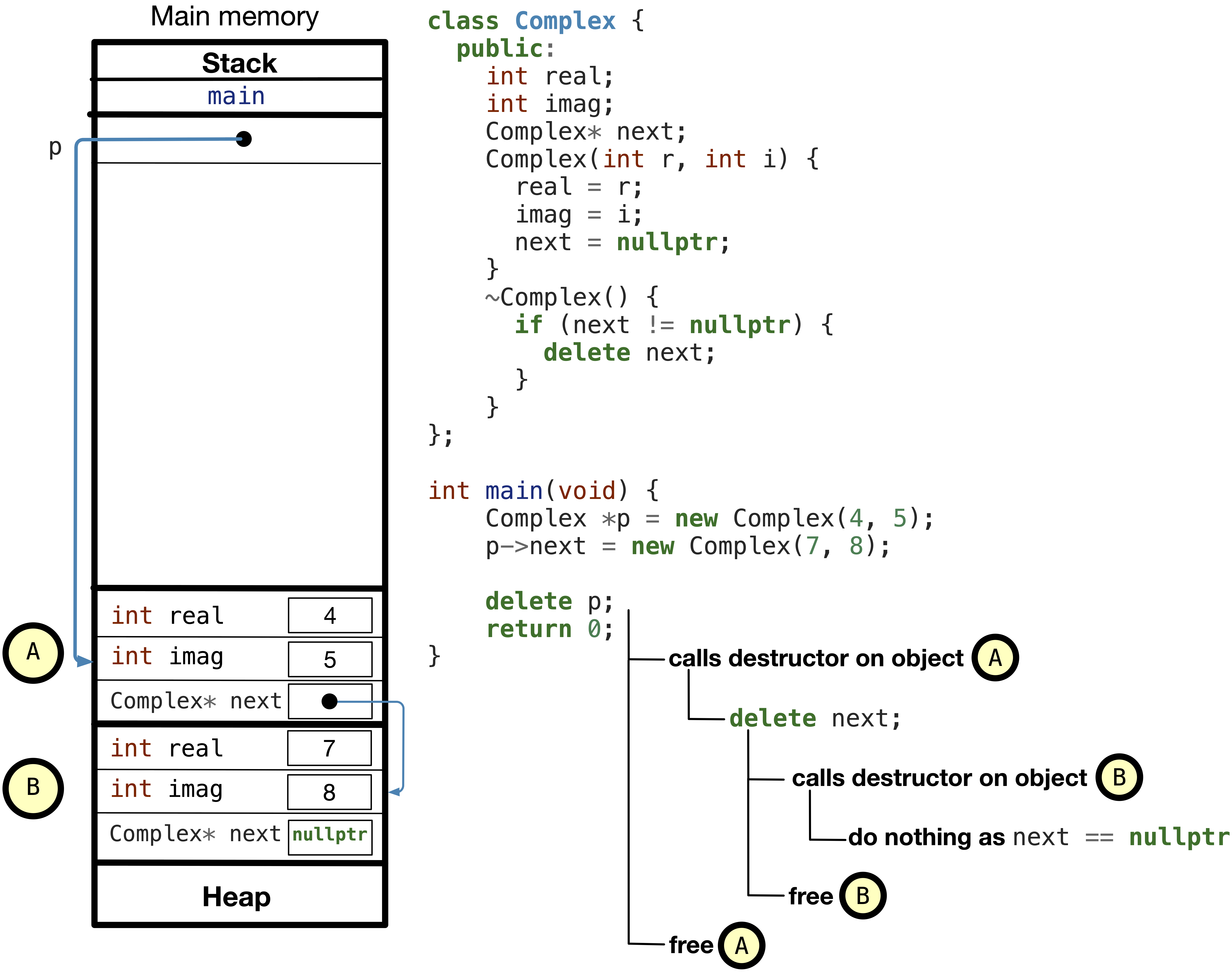

Fig. 3.8 When delete p is called, the destructor ~Complex() is called for the first Complex object, which then calls the destructor for the second Complex object pointed to by p->next, freeing the memory for both objects.

As shown in Fig. 3.8, when delete p is called, the destructor ~Complex() is called for the first Complex object “A”. The destructor will check the next of object “A”, and delete next; if it’s not nullptr. The delete next line will call the destructor for the second Complex object “B”, which will then check its own next pointer. Since the next of “B” is nullptr, the destructor for “B” will not call delete next;. We will then return to the destructor for “A” at the line delete next and free the memory for the second Complex object “B”. This means delete next on “B” (i) called the destructor on “B” and (ii) freed the memory for “B”. Now, the destructor of “A” is done, and the memory of “A” will be freed by the delete p; line in main.

Note

The order of destructor calls is important. The destructor for the first object is called first, which then calls the destructor for the second object. When returning from the recursive destructor call, the memory for both objects is freed in the opposite order of their creation. – talk about this!

You can try running the code here:

#include <iostream>
using namespace std;


class Complex {
  public:
    int real;
    int imag;
    Complex* next;
    Complex(int r, int i) {
      real = r;
      imag = i;
      next = nullptr;
    }
    ~Complex() {
      cout << "Destructor called for Complex(" << real << ", " << imag << ")" << endl;
      if (next != nullptr) {
        delete next;
      }
    }
};

int main(void) {
    Complex *p = new Complex(4, 5);
    p->next = new Complex(7, 8);

    delete p;
    return 0;
}

class Complex {
  public:
    int real;
    int imag;
    Complex* next;
    Complex(int r, int i) {
      real = r;
      imag = i;
      next = nullptr;
    }
    ~Complex() {
      cout << "Destructor called for Complex(" << real << ", " << imag << ")" << endl;
      if (next != nullptr) {
        delete next;
      }
    }
};

int main(void) {
    Complex *p = new Complex(4, 5);
    p->next = new Complex(7, 8);

    delete p;
    return 0;
}
